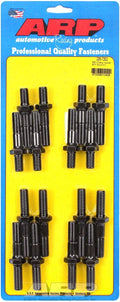

ARP 2357202 Pro Series Rocker Arm Stud Kit, Chrome Moly Steel With Black Oxide Finish, 16 Pieces, For Select Dart Aluminum Heads

If you have ever installed a rocker stud into a cylinder head and watched it wobble as it screwed in, you knew from the beginning that the rocker geometry was going to be inconsistent all over the place. The solution? ARP quality. ARP rocker studs are concentric within .005 T.I.R. thread pitch to thread pitch. They run-in straight and true, and the extra-large radius base offers greater resistance to flex. Lengths are exact -- designed to provide positive seating every time. These Pro series rocker arm studs are from premium grade 8740 chrome moly steel and heat-treated to a tensile strength of 200,000 psi. ARP's patented Perma-Loc adjusters (available separately) should be used, not OEM-style self-locking nuts. It is highly advisable to determine what the optimum rocker arm stud length is for your particular application. This is especially true when 'long' pushrods and valves are employed -- you should raise the 'installed height' of the rocker arm to compensate for the longer-than-stock components. The dimensions for these studs are: 2.000 overall stud height, .1.3, .820 screw-in thread depth, 1.000 adjuster thread depth, 7/16-20 shank diameter and thread, and 7/16-14 base diameter and thread.

Additional details

• Part Interchange Info : 235-7202

Features & Specs

• Color : Black
• Exterior Finish : Painted
• Fastener Type : Stud Bolt
• Grade Rating : Class 8.8
• Head Type : Hex
• Item Hardness : Grade 8.8
• Manufacturer Grade : Grade 8740
• Part Interchange Info : 235-7202
• Screw Head Style : Flat
• Screw Point Style : Perma-Loc
• Thread Class : 1A
• Thread Size : 7/16-20
• Thread Style : Right Hand
• Thread Type : Fractional Inch

Item details

• ASIN : B000CFS3O8
• Brand : ARP
• Color : Black
• Fastener Type : Stud Bolt
• Global Trade Identification Number : 00672036010409
• Included Components : Hardware Kits - Other
• Item Type Name : Hardware Kits - Other
• Item Weight : 2.2 Pounds
• Manufacturer : ARP
• Model : 235-7202
• Number Of Items : 1
• Part Interchange Info : 235-7202
• Part Number : 2357202
• Set Name : ARP Pro Series Rocker Arm Stud Kit (16 Pieces)
• UPC : 672036010409
• Unit Count : 1.0 Count
• Warranty Description : Manufacturer Warranty

Materials & Care

• Exterior Finish : Painted
• Finish Types : Black
• Material Type : Alloy Steel
• Metal Type : Alloy Steel

Measurements

• Fastener Size : 7/16-20
• Item Diameter : 0.44 Inches
• Item Weight : 2.2 Pounds
• Number of Pieces : 16
• Size Name : Stock
• Thread Coverage : Double End Threaded
• Thread Size : 7/16-20
